Docker Image を自作する (4)

ubuntu 24.04LTS + 新規ユーザ + sshd + httpd + cert


[Up] Japanese English
このページ内での表記:
「ホストOSの対話環境」は背景色を黄色(lightyellow)で表す。
「Conainer 内の root 権限の対話環境」は背景色を水色(azure)であらわす。
「Conainer 内の一般ユーザ権限の対話環境」は背景色を赤色(#ffeeee)であらわす。
「他のPCの対話環境」は紫色(#eeeeff)で表す。

sshd, httpd (https) が自動起動する ubuntu24.04LTS の docker Image を生成する

方針

作成手順

  1. 作業用フォルダを作成する
  2.   $ mkdir -p ~/doc/docker/ubuntu24_sshd_https_supervisor
      $ cd ~/doc/docker/ubuntu24_ssd_https_supervisor

  3. 作業用フォルダの中に Dockerfile を作成する。
  4. Dockerfile
    # ゲストOS: Ubuntu 24.04 LTS

    FROM ubuntu:24.04


    # Change Your Own UNAME, UID, GID, PASS

    ENV UNAME=guest
    ENV UID=3000
    ENV GID=3000
    ENV PASS=password

    ENV SSHD_PORT=22


    # 必要なパッケージのインストール

    RUN apt-get update && \
        DEBIAN_FRONTEND=noninteractive apt-get install -y \
        sudo \
        bash \
        openssh-server \
        supervisor \
        apache2 \
        libapache2-mod-php \
        php-fpm \
        net-tools iputils-tracepath traceroute iputils-ping curl iproute2 \
        cron certbot \
        && rm -rf /var/lib/apt/lists/*


    # SSH 設定: パスワード認証を有効化

    RUN sed -i 's/#PasswordAuthentication yes/PasswordAuthentication yes/' /etc/ssh/sshd_config && \
        sed -i 's/PermitRootLogin prohibit-password/PermitRootLogin no/' /etc/ssh/sshd_config && \
        sed -i "s/^#Port.*/Port ${SSHD_PORT}/" /etc/ssh/sshd_config && \
        mkdir /var/run/sshd


    # Apache 設定: ServerName エラー防止

    RUN echo "ServerName localhost" >> /etc/apache2/apache2.conf

    # PHP 設定
    RUN sed -i 's/^;date\.timezone =.*/date\.timezone = "Asia\/Tokyo"/' /etc/php/8.3/apache2/php.ini

    # PHP-FPM によるPHPの高速化
    RUN sed -i \
        '/<\/VirtualHost>/i <FilesMatch "\\.php$">\n  SetHandler "proxy:unix:/var/run/php/php8.3-fpm.sock|fcgi://localhost/"\n</FilesMatch>' \
        /etc/apache2/sites-available/default-ssl.conf

    RUN a2enmod proxy_fcgi setenvif
    RUN a2enconf php8.3-fpm


    # supervisord の設定ファイルを設置する (Daemon 起動用)

    RUN mkdir -p /var/log/supervisor
    COPY supervisord.conf /etc/supervisor/conf.d/supervisord.conf


    # ポート開放

    EXPOSE 22 80


    # Copy Shell Script "entrypoint.sh"

    COPY start-apache2.sh /usr/local/bin
    RUN chmod +x /usr/local/bin/start-apache2.sh

    COPY entrypoint.sh /entrypoint.sh
    RUN chmod +x /entrypoint.sh

    ENTRYPOINT ["/entrypoint.sh"]

    CMD []

  5. 作業用フォルダの中に entrypoint.sh を作成する
  6. entrypoint.sh
    #!/bin/bash
    set -e

    if [ ! -f /var/app/.initialized ]; then
        ######## First Time ########

        echo "First run. Setting up ..."
        mkdir -p /var/app
        touch /var/app/.initialized

        # ユーザーが存在しない場合のみ作成する
        if id "${UNAME}" &>/dev/null; then
    	echo "User ${UNAME} already exists. Skipping creation."
        else
    	# 同名グループが無ければ作成
    	if ! getent group "${UNAME}" &>/dev/null; then
                echo "Creating group ${UNAME} with GID=${GID}"
                groupadd -g ${GID} ${UNAME}
    	else
                echo "Group ${UNAME} already exists. Skipping group creation."
    	fi

    	echo "Creating user ${UNAME} with UID=${UID}, GID=${GID}"
    	useradd -m -u ${UID} -g ${GID} -s /bin/bash ${UNAME}
    	echo "${UNAME}:${PASS}" | chpasswd
    	adduser ${UNAME} sudo
        fi

        # ホームディレクトリの Owner が root:root になることがあるので変更する。
        chown -v ${UNAME}:${UNAME}  /home/${UNAME}

        # SSHD のポート番号を変更する
        sed -i "s/^Port.*/Port ${SSHD_PORT}/" /etc/ssh/sshd_config

    else
        ######## Second Time or Later ########

        echo "Starting for the second time or later ..."

    fi

    # supervisord start (background)
    /usr/bin/supervisord -c /etc/supervisor/conf.d/supervisord.conf &

    # Execute Commands in CMD

    if [ "$#" -gt 0 ]; then
        exec "$@"
    else
        echo "No command provided. Starting bash ..."
        exec bash
    fi

  7. 作業用フォルダの中に supervisord.conf を作成する
  8. supervisord.conf
    # supervisord の設定ファイル

    [unix_http_server]
    file=/var/run/supervisor.sock   ; ソケットファイルの場所
    chmod=0700

    [supervisord]
    nodaemon=true
    logfile=/var/log/supervisor/supervisord.log
    pidfile=/var/run/supervisord.pid

    [rpcinterface:supervisor]
    supervisor.rpcinterface_factory = supervisor.rpcinterface:make_main_rpcinterface

    [supervisorctl]
    serverurl=unix:///var/run/supervisor.sock

    [program:sshd]
    command=/usr/sbin/sshd -D -e
    stdout_logfile=/var/log/sshd_stdout.log
    stderr_logfile=/var/log/sshd_stderr.log
    autostart=true
    autorestart=true

    [program:php-fpm]
    command=/usr/sbin/php-fpm8.3 -F
    autostart=true
    autorestart=true
    stdout_logfile=/var/log/php-fpm.log
    stderr_logfile=/var/log/php-fpm.err

    [program:apache2]
    #command=/usr/sbin/apache2 -D FOREGROUND    # ERROR for not loading /etc/apache2/envvars
    command=/usr/local/bin/start-apache2.sh
    autostart=true
    autorestart=true
    stopasgroup=true
    killasgroup=true
    stdout_logfile=/var/log/apache2_stdout.log
    stderr_logfile=/var/log/apache2_stderr.log

    [program:cron]
    command=/usr/sbin/cron -f
    autostart=true
    autorestart=true

  9. 作業用フォルダの中に start-apache2.sh を作成する
  10. start-apache2.sh
    #!/bin/bash
    source /etc/apache2/envvars
    exec apache2 -D FOREGROUND

  11. Image を build する。
  12.   $ docker build -t ubuntu24-sshd-https .
      ...
    成功

  13. 生成した Image を確認する
  14. $ docker image ls
    REPOSITORY            TAG       IMAGE ID       CREATED         SIZE
    ubuntu24-sshd-https   latest    d12fc3012451   2 hours ago    329MB
    ...

編集中
これ以下は未編集 (2025/05/27時点)

Container 用の永続的なファイルシステムを作成する

コンテナに永続的なファイルシステムを提供するために、1777 のパーミッションでフォルダを作っておく。 skicky bit が on (1777) のフォルダには、 「誰でもファイルを作成できるが、作成した本人だけがファイルを変更したり消したりできる」 という特徴がある。

$ sudo mkdir -p /home/docker         ← ディレクトリを作成する
$ sudo chmod 1777 /home/docker       ← 誰でもファイルを作成できるが、作成した本人にしか消去できないモードに設定する
$ ls -ld /home/docker                ← ディレクトリのsticky bit が on になっていることを確認する。
drwxrwxrwt 3 root root 4096  4月 26 15:47 /home/docker

Docker Network を生成する

「アクセスしてきたクライアントの正しいIPアドレスがContainer 上の httpdサーバ (apache2) に伝わる」ように macvlan を使って「Container に物理 NIC と同じネットワークの独立した IP アドレスを与える」ことにする。

前提条件と環境

  1. ホストOSの接続しているネットワークを調べる。
  2. $ netstat -nr
    カーネルIP経路テーブル
    受信先サイト    ゲートウェイ    ネットマスク   フラグ   MSS Window  irtt インタフェース
    0.0.0.0         192.168.12.1    0.0.0.0         UG        0 0          0 eno1
    172.17.0.0      0.0.0.0         255.255.0.0     U         0 0          0 docker0
    192.168.12.0    0.0.0.0         255.255.255.0   U         0 0          0 eno1

  3. ホストOSの IP アドレスを調べる。
  4. $ ifconfig
    	...
    eno1: flags=4163  mtu 1500
            inet 192.168.12.3  netmask 255.255.255.0  broadcast 192.168.12.255
            inet6 2409:11:3920:6400:5a47:caff:fe71:3b7d  prefixlen 64  scopeid 0x0
            inet6 2409:11:3920:6400:4c1a:ff8c:eab1:41c9  prefixlen 64  scopeid 0x0
            inet6 fe80::5a47:caff:fe71:3b7d  prefixlen 64  scopeid 0x20
            ether 58:47:ca:71:3b:7d  txqueuelen 1000  (イーサネット)
    ...

  5. docker のネットワーク一覧を表示して、macvlan_net が存在するかどうかを調べる。
  6. $ docker network ls
    NETWORK ID     NAME          DRIVER    SCOPE
    ebbd998b2086   bridge        bridge    local
    17420af9f271   host          host      local
    557533733a33   macvlan_net   macvlan   local
    a3538f29efc6   none          null      local

  7. (macvlan ネットワークが存在しない場合は ) macvlan ネットワークを作成する。
  8. $ docker network create -d macvlan \
        --subnet=192.168.12.0/24 \
        --gateway=192.168.12.1 \
        -o parent=eno1 \
        --ip-range=192.168.12.192/28 \
        macvlan_net


  9. docker のネットワーク一覧を表示する。macvlan_net が作成されていることがわかる。
  10. $ docker network ls
    NETWORK ID     NAME          DRIVER    SCOPE
    ebbd998b2086   bridge        bridge    local
    17420af9f271   host          host      local
    557533733a33   macvlan_net   macvlan   local
    a3538f29efc6   none          null      local

    $ docker network ls --no-trunc
    NETWORK ID                                                         NAME          DRIVER    SCOPE
    ebbd998b20868aea17c1e9f3cd85edb3c7c0ce9181edfe9b308284604275e136   bridge        bridge    local
    17420af9f27199ef5081c56e85910d913c73ae8f3885e48e4ed0b09a06d48016   host          host      local
    557533733a33e84ca9eb665736f6a273414778f30a3e744411596008728b0b2b   macvlan_net   macvlan   local
    a3538f29efc60166d3f639d42894eff9f902649036619190011c3a66b262a06a   none          null      local

  11. macvlan ネットワークの詳細をみる
  12.   $ docker network inspect macvlan_net
      [
        {
            "Name": "macvlan_net",
            "Id": "557533733a33e84ca9eb665736f6a273414778f30a3e744411596008728b0b2b",
            "Created": "2025-05-18T13:38:38.53151226+09:00",
            "Scope": "local",
            "Driver": "macvlan",
            "EnableIPv4": true,
            "EnableIPv6": false,
            "IPAM": {
                "Driver": "default",
                "Options": {},
                "Config": [
                    {
                        "Subnet": "192.168.12.0/24",
                        "IPRange": "192.168.12.192/28",
                        "Gateway": "192.168.12.1"
                    }
                ]
            },
            "Internal": false,
            "Attachable": false,
            "Ingress": false,
            "ConfigFrom": {
                "Network": ""
            },
            "ConfigOnly": false,
            "Containers": {
                "65cf25b6ca3756fd9babc1b29d9b1a30d493c9ee85a713b530a91e999f9c35de": {
                    "Name": "ubuntu24-sshd-httpd-vlan193",
                    "EndpointID": "f8525f08c56d699552c023cdd7a589c2dd177ed575085d15b44eea960f83df3e",
                    "MacAddress": "a6:a6:4d:50:7a:0d",
                    "IPv4Address": "192.168.12.193/24",
                    "IPv6Address": ""
                }
            },
            "Options": {
                "parent": "eno1"
            },
            "Labels": {}
        }
    ]


Docker Contaner を生成する

Image ubuntu24-sshd-https を用いて、 macvlan_net ネットワークに接続する、 新しい Container ubuntu24-sshd-https-vlan193 を生成する。

Container を作成+実行する

  1. image から container を生成して起動する。 下の実行例はユーザ名を www とした場合である。
  2.   $ docker run --name ubuntu24-sshd-https-vlan193 --restart always \
        -e UNAME=www -e UID=2000 -e GID=2000 \
        --network macvlan_net \
        --ip 192.168.12.193 \
        --cap-add=NET_ADMIN \
        -v /home/docker/httpd:/mnt/hostos \
        -it ubuntu24-sshd-https

    起動オプション
  3. Container を起動した対話環境が、そのままContainer 内で動作する bash との対話環境になる。root権限でloginした状態である。
  4. First run. Setting up ...
    Creating group www with GID=2000
    Creating user www with UID=2000, GID=2000
    info: Adding user `www' to group `sudo' ...
    ownership of '/home/www' retained as www:www
    No command provided. Starting bash ...
    root@74996e43a896:/# 2025-05-25 04:58:18,756 CRIT Supervisor is running as root.  Privileges were not dropped because no user is specified in the config file.  If you intend to run as root, you can set user=root in the config file to avoid this message.
    2025-05-25 04:58:18,759 INFO RPC interface 'supervisor' initialized
    2025-05-25 04:58:18,759 CRIT Server 'unix_http_server' running without any HTTP authentication checking
    2025-05-25 04:58:18,759 INFO supervisord started with pid 41
    2025-05-25 04:58:19,763 INFO spawned: 'apache2' with pid 44
    2025-05-25 04:58:19,765 INFO spawned: 'cron' with pid 45
    2025-05-25 04:58:19,766 INFO spawned: 'php-fpm' with pid 46
    2025-05-25 04:58:19,768 INFO spawned: 'sshd' with pid 48
    2025-05-25 04:58:20,787 INFO success: apache2 entered RUNNING state, process has stayed up for > than 1 seconds (startsecs)
    2025-05-25 04:58:20,788 INFO success: cron entered RUNNING state, process has stayed up for > than 1 seconds (startsecs)
    2025-05-25 04:58:20,788 INFO success: php-fpm entered RUNNING state, process has stayed up for > than 1 seconds (startsecs)
    2025-05-25 04:58:20,788 INFO success: sshd entered RUNNING state, process has stayed up for > than 1 seconds (startsecs)
    #                ← Container 内の対話環境 (root 権限の bash) が動く

  5. 直ちに ユーザ www のパスワードを変更する。
  6. # passwd www
    New password: 新しいパスワード        ← 新しいパスワードを入力する(エコーバックされない)
    Retype new password: 新しいパスワード ← もう一度新しいパスワードを入力する(エコーバックされない)

  7. ネットワークコマンドはインストール済みである。もしも、インストールされていない場合は以下の手順でインストールする。
  8. まず、aptのデータベースを更新する。
    #  apt update

    ifconfig, netstat, arp をインストールする
    # apt install -y net-tools

    traceroute をインストールする
    $ apt install -y iputils-tracepath traceroute

    ping をインストールする
    $ sudo apt install -y iputils-ping

    curl をインストールする
    $ sudo apt install -y curl

    ip をインストールする
    $ sudo apt install -y iproute2

  9. netstat コマンドを用いて、ルーティング情報を調べる。 → Container が接続しているネットワークは 192.168.12.0/24で、 デフォルトのルーティング先が 192.168.12.1 であることがわかる
  10. $ netstat -nr
    Kernel IP routing table
    Destination     Gateway         Genmask         Flags   MSS Window  irtt Iface
    0.0.0.0         192.168.12.1    0.0.0.0         UG        0 0          0 eth0
    192.168.12.0    0.0.0.0         255.255.255.0   U         0 0          0 eth0

  11. ifconfig でContainer のIPアドレスを調べる。 → 192.168.12.193 であることがわかる。
  12. $ ifconfig
    eth0: flags=4163  mtu 1500
            inet 192.168.12.193  netmask 255.255.255.0  broadcast 192.168.12.255
            ether 8a:9e:8a:00:aa:16  txqueuelen 0  (Ethernet)
            RX packets 5434  bytes 30400112 (30.4 MB)
            RX errors 0  dropped 0  overruns 0  frame 0
            TX packets 4498  bytes 300984 (300.9 KB)
            TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

    lo: flags=73  mtu 65536
            inet 127.0.0.1  netmask 255.0.0.0
            inet6 ::1  prefixlen 128  scopeid 0x10
            loop  txqueuelen 1000  (Local Loopback)
            RX packets 8  bytes 1058 (1.0 KB)
            RX errors 0  dropped 0  overruns 0  frame 0
            TX packets 8  bytes 1058 (1.0 KB)
            TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

  13. Container では firewall は動作していない。現在の Image 元にした ubuntu:24.04 では ufw や iptavbles がインストールされていないため。
  14. # iptables -L
    bash: iptables: command not found
    # ufw status
    bash: ufw: command not found

  15. 手動で firewall を設定する。
  16. ufw をインストールする。
    # apt update
    # apt install -y ufw

    ufw を有効化する
    # ufw enable
    Status: active

    # ufw allow from 0.0.0.0/0 to any port 22 proto tcp
    Rule added
    # ufw allow from 0.0.0.0/0 to any port 80 proto tcp
    Rule added
    # ufw allow from 0.0.0.0/0 to any port 443 proto tcp
    Rule added

    外部からのアクセスはデフォルトで禁止にする。
    # ufw default deny incoming

    ファイアウォールの設定状況を見る
    # ufw status
    Status: active
    To                         Action      From
    --                         ------      ----
    22/tcp                     ALLOW       Anywhere
    80/tcp                     ALLOW       Anywhere
    443/tcp                    ALLOW       Anywhere

  17. ネットワーク上の他のマシンから、ssh接続できることを確認する。
  18. sshで
    $ ssh www@192.168.12.193

    [注意] パスワードを迅速に変更しておくこと。
  19. ネットワーク上の他のマシンから httpd 接続できることを確認する。
  20. ブラウザで url: http://192.168.12.193/

httpsを使えるように設定する

証明書を発行する

  1. ルータを使って外部ネットワークと切り分けている場合は、ルータのポートフォワーディング機能を用いて 80番ポートと 443番ポートへのアクセスが、apache2 サーバに転送されるように設定しておく。
  2. certbot をインストールする ← これは Dockerfile の中でやってあるはず。
  3. # apt -y install certbot

  4. certbot のパラメータ
  5.   --webroot でWebサーバの公開ディレクトリ配下を認証用に一時領域に使う
      -w DocumentRoot
      -d 証明書を取得する対象の FQDN (= Fully Qualified Domain Name)

  6. certbot を使って、証明書を発行する。
  7. # certbot certonly --webroot -w /var/www/html -d ynitta.net
    Saving debug log to /var/log/letsencrypt/letsencrypt.log
    Enter email address (used for urgent renewal and security notices)
     (Enter 'c' to cancel): y7anitta@gmail.com

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Please read the Terms of Service at
    https://letsencrypt.org/documents/LE-SA-v1.3-September-21-2022.pdf. You must
    agree in order to register with the ACME server. Do you agree?
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    (Y)es/(N)o: y

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Would you be willing, once your first certificate is successfully issued, to
    share your email address with the Electronic Frontier Foundation, a founding
    partner of the Let's Encrypt project and the non-profit organization that
    develops Certbot? We'd like to send you email about our work encrypting the web,
    EFF news, campaigns, and ways to support digital freedom.
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    (Y)es/(N)o: n
    Account registered.
    Requesting a certificate for ynitta.net

    Successfully received certificate.
    Certificate is saved at: /etc/letsencrypt/live/ynitta.net/fullchain.pem
    Key is saved at:         /etc/letsencrypt/live/ynitta.net/privkey.pem
    This certificate expires on 2023-09-01.
    These files will be updated when the certificate renews.
    Certbot has set up a scheduled task to automatically renew this certificate in the background.

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    If you like Certbot, please consider supporting our work by:
     * Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
     * Donating to EFF:                    https://eff.org/donate-le
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

  8. 証明書を自動的に更新する設定を行う。 証明書の更新手順が通常とは異なるので注意すること。
  9. docker container ではsystemd が動作していないので systemctl が使えない。 そのため、cron を使って certbot を定期的に実行する。

  10. cron はインストールされているはず。
  11. # which cron
    /usr/sbin/cron

    # ps aux | grep cron
    root          44  0.0  0.0   4192  2340 pts/0    S    04:10   0:00 /usr/sbin/cron -f
    root        1223  0.0  0.0   3528  1740 pts/0    S+   04:19   0:00 grep --color=auto cron


  12. [Optional] Editor をインストールして環境変数を設定する。
  13. # apt install -y vim
    $ export EDITOR=vi

  14. certbot renew を crontab に登録する
  15. $ crontab -e
  16. 以下を追加する。毎日 2:00 に更新をチェックする。証明書が更新されたときは apache2 を再起動する。
  17. この Container では apache2 を supervisord 経由で起動しているので、 apache2 の再起動に systemctl や apachectl は使えない。 本来は supervisorctl を用いるそうだが、ここでは service コマンドで行ってしまう。
    0 2 * * * certbot renew --quiet --deploy-hook "service apache2 restart"


apache2 の設定を変更する

  1. apache2 にsslモジュールを追加する
  2. # a2enmod ssl
    # a2enmod ssl
    Considering dependency mime for ssl:
    Module mime already enabled
    Considering dependency socache_shmcb for ssl:
    Enabling module socache_shmcb.
    Enabling module ssl.
    See /usr/share/doc/apache2/README.Debian.gz on how to configure SSL and create self-signed certificates.
    To activate the new configuration, you need to run:
      service apache2 restart

  3. /etc/apache2/sites-available/default-ssl.conf が生成されるので編集する。
  4. /etc/apache2/sites-available/default-ssl.confの変更点
    *** default-ssl.conf.ORG        Sun May 25 05:46:24 2025
    --- default-ssl.conf    Sun May 25 05:48:02 2025
    ***************
    *** 1,5 ****
      <VirtualHost *:443>
    !       ServerAdmin webmaster@localhost

            DocumentRoot /var/www/html

    --- 1,5 ----
      <VirtualHost *:443>
    !       ServerAdmin y7anitta@gmail.com

            DocumentRoot /var/www/html

    ***************
    *** 28,35 ****
            #   /usr/share/doc/apache2/README.Debian.gz for more info.
            #   If both key and certificate are stored in the same file, only the
            #   SSLCertificateFile directive is needed.
    !       SSLCertificateFile      /etc/ssl/certs/ssl-cert-snakeoil.pem
    !       SSLCertificateKeyFile   /etc/ssl/private/ssl-cert-snakeoil.key

            #   Server Certificate Chain:
            #   Point SSLCertificateChainFile at a file containing the
    --- 28,35 ----
            #   /usr/share/doc/apache2/README.Debian.gz for more info.
            #   If both key and certificate are stored in the same file, only the
            #   SSLCertificateFile directive is needed.
    !       SSLCertificateFile      /etc/letsencrypt/live/ynitta.net/cert.pem
    !       SSLCertificateKeyFile   /etc/letsencrypt/live/ynitta.net/privkey.pem

            #   Server Certificate Chain:
            #   Point SSLCertificateChainFile at a file containing the
    ***************
    *** 38,44 ****
            #   the referenced file can be the same as SSLCertificateFile
            #   when the CA certificates are directly appended to the server
            #   certificate for convinience.
    !       #SSLCertificateChainFile /etc/apache2/ssl.crt/server-ca.crt

            #   Certificate Authority (CA):
            #   Set the CA certificate verification path where to find CA
    --- 38,44 ----
            #   the referenced file can be the same as SSLCertificateFile
            #   when the CA certificates are directly appended to the server
            #   certificate for convinience.
    !       SSLCertificateChainFile /etc/letsencrypt/live/ynitta.net/chain.pem

            #   Certificate Authority (CA):
            #   Set the CA certificate verification path where to find CA

  5. SSLを有効化する
  6. /etc/apache2/sites-enabled/default-ssl.conf から /etc/apache2/sites-available/default-ssl.conf への シンボリックリンクを張る。
    # a2ensite default-ssl
    Enabling site default-ssl.
    To activate the new configuration, you need to run:
      service apache2 reload

  7. SSLを有効化する
  8. mod_ssl を有効化する。具体的には /etc/apache/mods-enabled/ssl.{load, conf} から/etc/apache/mods-available/ssl.{load,conf} へのシンボリックリンクを張る。
    # a2enmod ssl
    Considering dependency mime for ssl:
    Module mime already enabled
    Considering dependency socache_shmcb for ssl:
    Module socache_shmcb already enabled
    Module ssl already enabled

  9. apache2 を再起動する
  10. 本来は supervisorctl を使うべきらしいが、面倒なのでここでは service から再起動する設定にした。
    # service apache2 restart
     * Restarting Apache httpd web server apache2                                                                                          [ OK ]

  11. (覚書) supervisorctl を使う場合は以下の手順が必要。
  12. supervisord.conf を次のように変更する。 この場合の apache2 の再起動コマンドは "supervisorctl restart apache2"
    supervisord.conf の変更点
    diff -c -r ubuntu24_sshd_https/supervisord.conf ubuntu24_sshd_https_supervisor/supervisord.conf
    *** ubuntu24_sshd_https/supervisord.conf        2025-05-24 16:46:25.000000000 +0900
    --- ubuntu24_sshd_https_supervisor/supervisord.conf     2025-05-25 13:55:02.353051752 +0900
    ***************
    *** 1,8 ****
    --- 1,19 ----
      # supervisord の設定ファイル

    + [unix_http_server]
    + file=/var/run/supervisor.sock   ; ソケットファイルの場所
    + chmod=0700
    +
      [supervisord]
      nodaemon=true
      logfile=/var/log/supervisor/supervisord.log
    + pidfile=/var/run/supervisord.pid
    +
    + [rpcinterface:supervisor]
    + supervisor.rpcinterface_factory = supervisor.rpcinterface:make_main_rpcinterface
    +
    + [supervisorctl]
    + serverurl=unix:///var/run/supervisor.sock

      [program:sshd]
      command=/usr/sbin/sshd -D -e

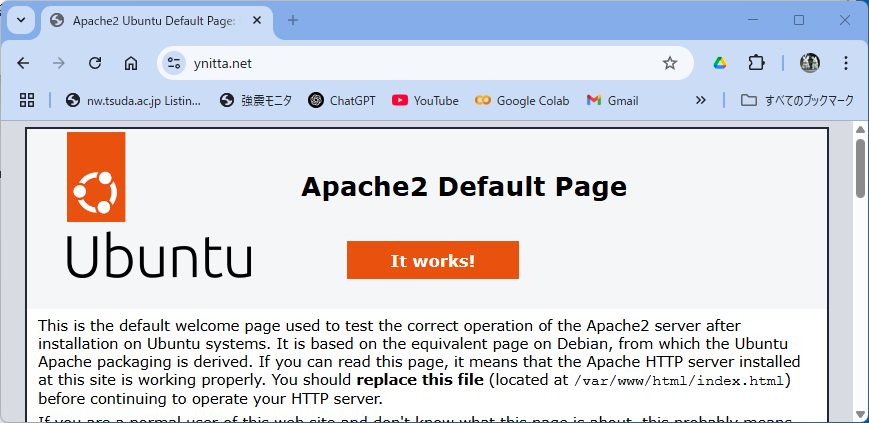

  13. ネットワーク上の他のマシンから https 接続してみる。
  14. URL: https://ynitta.net
